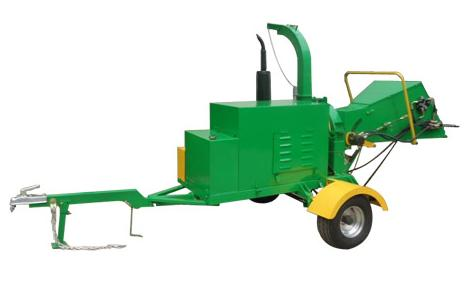

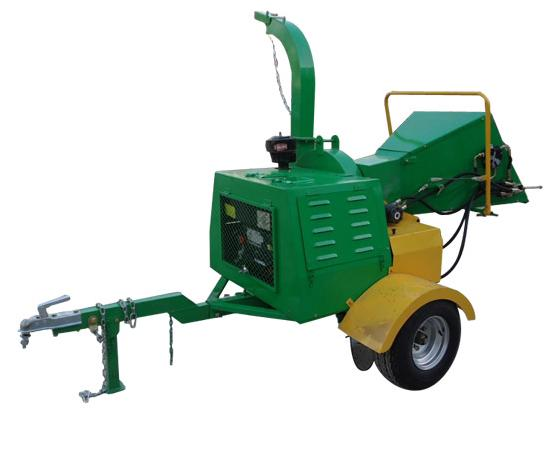

Heavy-Duty 22HP Diesel Wood Chipper For Efficient Chipping

Heavy-Duty 22HP Diesel Wood Chipper for Efficient Chipping Admin Edit

Min. Order:	5 Piece/Pieces
Trade Term:	FOB
Payment Terms:	L/C, T/T
Place of Origin:	Zhejiang, China (Mainland)
Means of Transport:	Ocean
Production Capacity:	1000
Packing:	Steel Frame

Delivery Date:	30	warranty:	1 year
package:	Steel Frame	Engine Type:	22HP
Max. Cutting Diameter:	8"	Start:	Electric Start
Blades Numbers:	1 Stationary Blade, 2 Rotary Blades	Working Efficiency:	10-12 Cbm/H

Introducing our robust 22HP Yanmar diesel wood chipper - your go-to solution for powerful, diesel-powered wood chipping! Experience the efficiency of our portable wood chipper that makes your tasks easier and faster.

Discover the versatility of the WC-22, equipped with a 22HP Changchai diesel engine, and also available with the trusted YANMAR engine option for enhanced performance.
2. Choose between mechanical roller feeding and hydraulic roller feeding to suit your specific needs and preferences.
3. Customize your chipping experience with the option of a single feeding roller or dual feeding rollers for greater efficiency.
4. Achieve remarkable results with a maximum cutting diameter of up to 8 inches, tackling even the toughest wood with ease.
5. The 360 degrees rotary discharge chute allows for flexible and precise discharge direction, ensuring convenient operation.
6. Designed for mobility, our high-speed wheels allow for effortless road driving when attached to a truck or car, making transportation hassle-free.
7. Enjoy secure connectivity with a 2-inch coupler ball, ensuring stability during transportation.
8. Rest assured with CE & EPA certification, guaranteeing compliance with safety and environmental standards.

Engine	Item	Changchai or YANMAR diesel engine
	type	Single cylinder, horizontal, four-stroke
	Combustion chamber type	Direct Injection
	Cylinder diameter	115mm
	Piston stroke	115mm
	Piston displacement	1.194L
	Piston average speed	8.43m/s
	Compression ratio	17.3
	Rated power	16.2KW/2200rpm
	Effective pressure	740KPa
	Fuel consumption rate	<245g/KW.h
	Engine oil consumption	<1.5g/KW.h
	Cooled style	Water-cooled (evaporation)
	Start	Electric start
	weight	190kgs
	dimensions	918x451x689mm
	Fuel	Diesel 0# in summer, -10# or -20# in winter
Chipper capacity		150mm (Max. To 200mm)
Flywheel diameter		640mm
flywheel weight		85kgs
Blades Numbers		1 stationary blade, 2 rotary blades
Feed Hopper inner Opening		200 x 220mm
Discharge Hood Height		2000mm
Rated RPM		1080
Weight		650kg
Working efficiency		10-12 cbm/h
